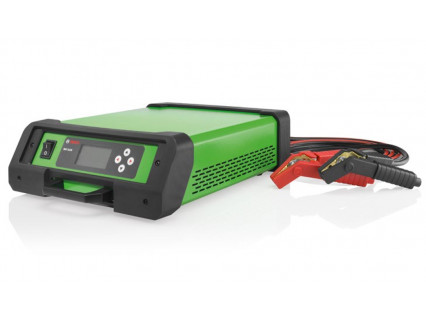

BAT 6120 BATTERY SUPPORT UNIT (0687000044)

The Bosch BAT 6120 is a future-proof, professional, two-in-one battery support solution for automotive workshops.

Key Features

• Supports 120 A DC Continuous Output (AC120 V - 240 V, 25 degree Celcius)
• Supports Flooded/AGM/EFB/GEL/Lithium (LFP) Batteries
• 12 V Lead Acid Battery Charge. Charging Diagnosis / 12 V Lithium Battery Charge, Wake Up
• Interface available in 26 languages
• Maximum power output: up to 1750 W
• Flexible operation modes to fulfill customer needs
• Desk, floor or wall operations possible
• Fits underneath a car in show room
• Easy to use large 4 colour backlight LCD display including wall mount mode
• Easy access to BAT 6120 Help Center web page through QR code displayed on the screen
• Max. Charge current intensity 12V: 120 A
• Length of the charging cable: 3 m (twin cable)
• Cross-section charging cable: 25 mm sq.
• Power input :120 - 240 V AC
• Weight (without charging and power cable): 8.5 kg
• Charging characteristic: up to 120 Amperes continuous. Battery types: UNI, WET, EFB, AGM, VRLA/GEL, LFP (LiFePO4)
• Backup mode: 12.0 V - 13.2 V adjustable, default 12.6 V / 10 A - 30 A adjustable power limit, default 20 A
• Floating-mode operation: 12.0 V - 13.2 V adjustable, default 13.5 V
• Max. 120 A continuous current
• Function temperature range: 0 40 degree(C)
• Main voltage: 220 - 240 V, 50/60 Hz
• Battery nominal voltage: 12 V
• Protection type (DIN 40050): IP 20 D
• Dimensions (W x H x D): 329 x 116 x 433 mm
