CAMSHAFT KIT FOR 1.5 DIESEL ENGINE DV5 ENGINE CITROËN & PEUGEOT (APX-RA-CS2312K)

£ 332.00
Part Number: APX-RA-CS2312K
Availability: In Stock
Category: SMALL REBUILD KITS
Vehicles: CITROËN, FORD, PEUGEOT, OPEL, VAUXHALL, TOYOTA, DS
APEX AUTO PARTS

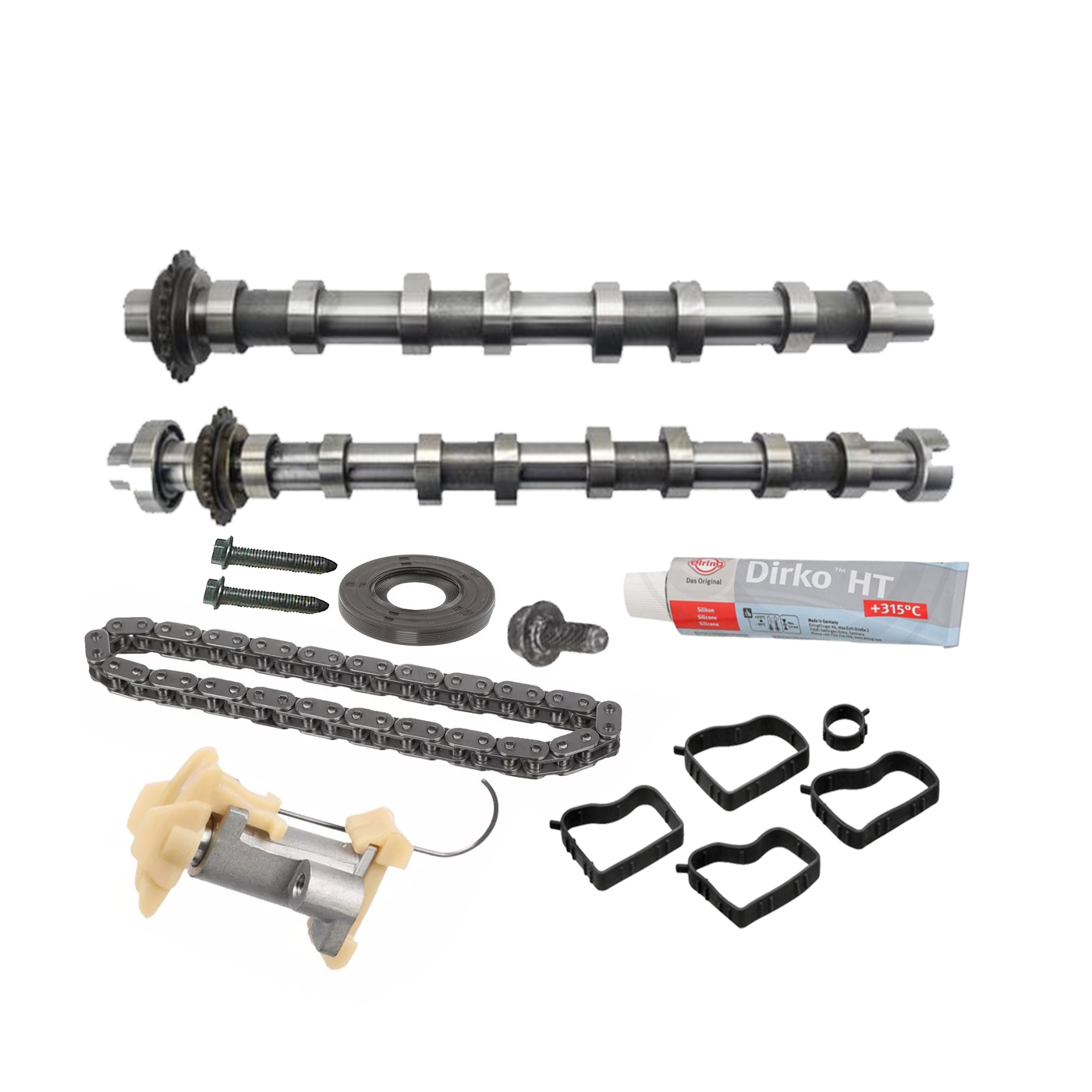

Parts Included in Kit:

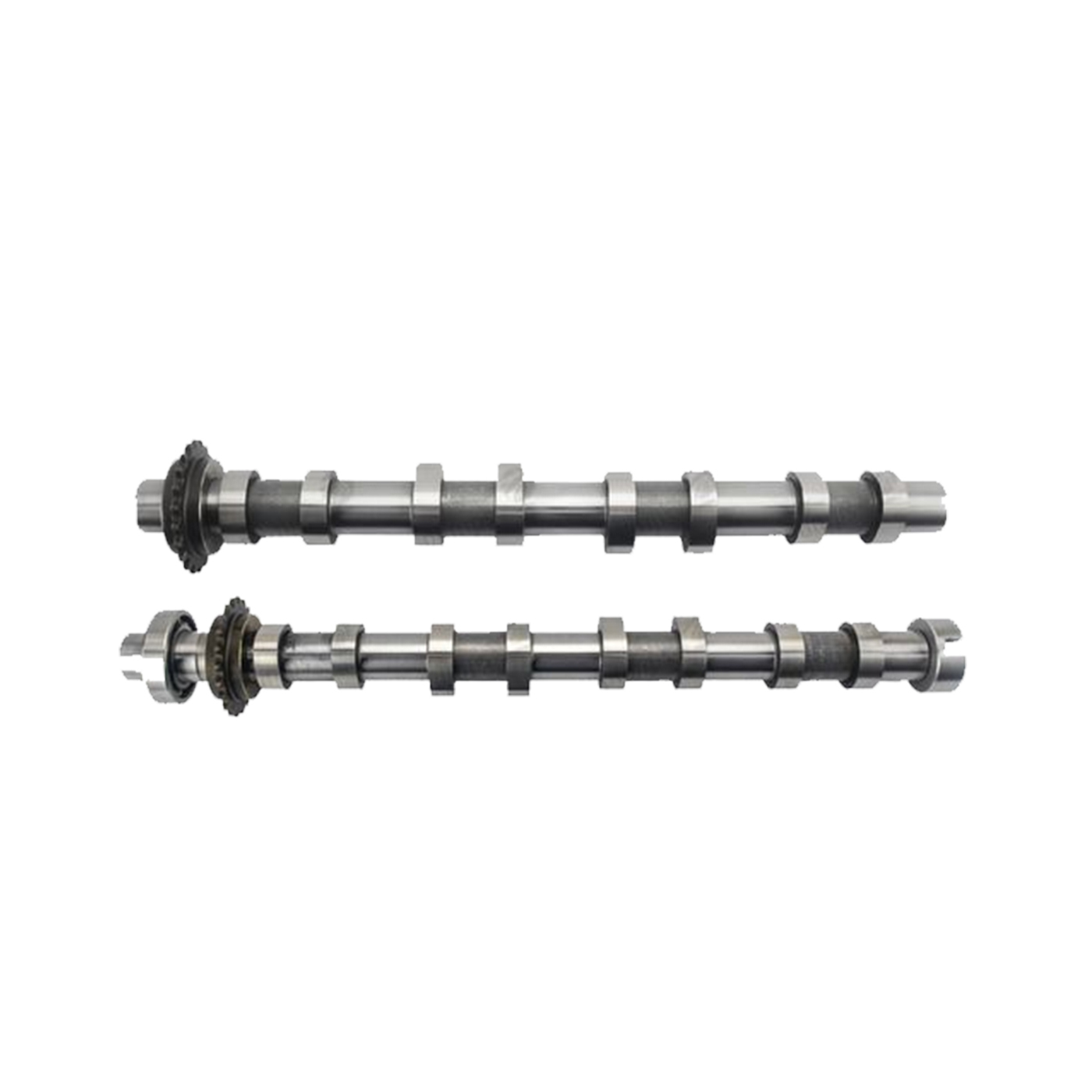

1 x Inlet Camshaft (21 Teeth)
1 x Exhaust Camshaft (21 Teeth)

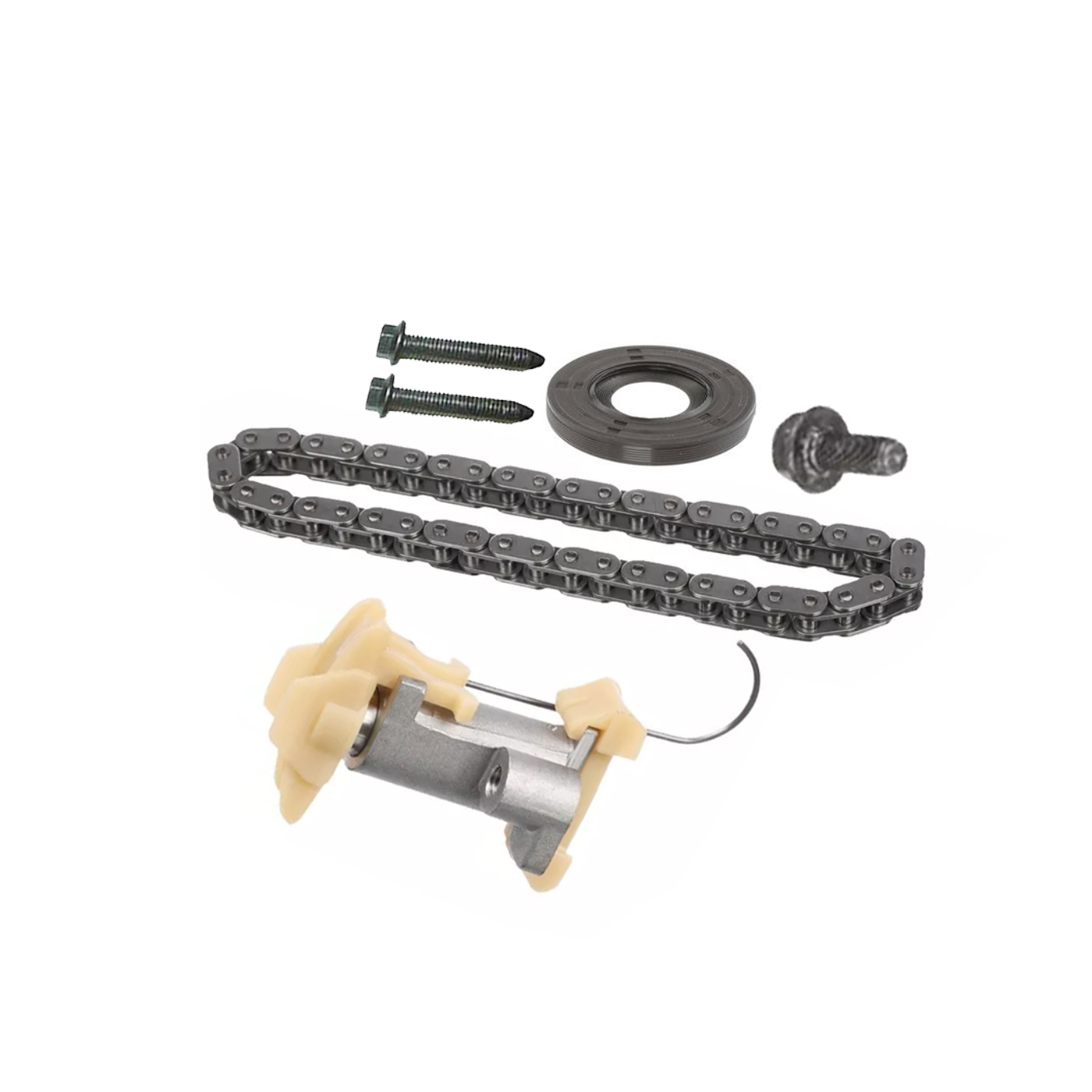

1 x Timing Chain Kit (7mm Pitch)

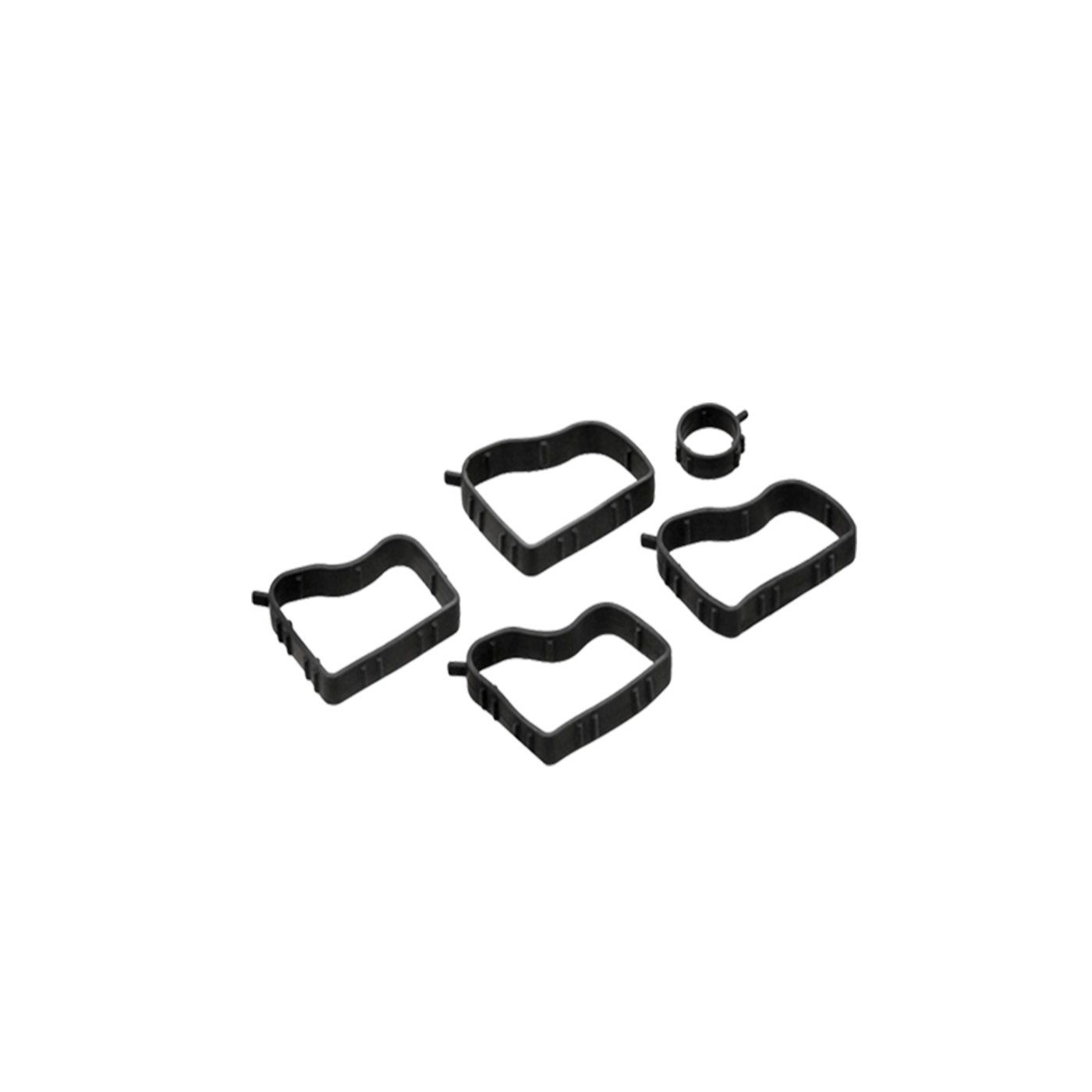

1 x Head Cover Gasket Set
1 x Sealant

Note: 7mm Camshafts Have 21 Teeth (On Camshaft) & 22 Links Of Chain (Number Of Links On Chain)

  • CITROËN: YHR (DV5RUCd), YHS (DV5RCE), YHV (DV5RUC), YHW (DV5RE), YHX (DV5RC), YHY (DV5RD), YHZ (DV5RC)
  • DS: YHY (DV5RD), YHZ (DV5RC)
  • FORD: Z2DA, Z2GA, ZTDA, ZTDB, ZTGA
  • OPEL: D 15 DT (DV5RD), D 15 DT (DV5RUCD), D 15 DTH (DV5RC), D 15 DTH (DV5RUC), D 15 DTL (DV5RE)
  • PEUGEOT: YHR (DV5RUCd), YHS (DV5RCE), YHT (DV5RCF), YHV (DV5RUC), YHW (DV5RE), YHX (DV5RC), YHY (DV5RD), YHZ (DV5RC)
  • TOYOTA: 5WZ-HV (DV5RUC), 5WZ-TV (DV5RUCD)
  • VAUXHALL: D 15 DT (DV5RD), D 15 DT (DV5RUCD), D 15 DTH (DV5RC), D 15 DTH (DV5RUC), D 15 DTL (DV5RE)
  • CITROËN: 9823920080, 9823954880, 9826028980, 98 239 548 80, 98 260 289 80, 98 244 936 80, 9824493680, 12743, 9813996980, 9815670380, 9815670480, 9815670580, 9820961080, 9823266880, 9823268500, 9823274280, 16629032280, 0514.A2, 16 290 322 80, 98 139 969 80, 98 156 703 80, 98 156 704 80, 98 156 705 80, 98 209 610 80, 98 209 787 80, 98 232 668 80, 98 232 685 80, 98 232 742 80, 98 232 743 80, 98 232 744 80, 98 232 745 80, 98 232 747 80, 9810055780, 98 100 557 80
  • DS: 98 244 936 80, 9824493680, 9810055780, 98 100 557 80
  • FORD: 2302272, 2190885, 2 189 860, JX6Q-6051-AB, 2189860, JX6Q6051AB, 2190320, 2 190 320, 2 190 322, JX6Q 6700 BA, JX6Q 6701 BA, JX6Q-6700BA, 2190197, JX6Q-6571-AA, 2 190 197, JX6Q6571AA, 2191011, JX6Q-6A273-AC, 2191010, JX6Q-6A270-AC
  • OPEL: 3553732, 3556998, 3557000, 9823920080, 9823954880, 9826028980, 3 553 643, 3553643, 3553649, 3553663, 3553677, 3553684, 3553773, 3553949, 3556986, 3556987, 3556988, 3556989, 3556990, 3556994, 3556996, 3 556 990, 3 556 991, 3 648 764, 35 56 991, 36 48 764, 3553627, 3 553 627
  • PEUGEOT: 9823920080, 9823954880, 9826028980, 98 239 548 80, 98 260 289 80, 98 244 936 80, 9824493680, 9813996980, 9815670380, 9815670480, 9815670580, 9823266880, 9823268500, 9823274280, 16629032280, 0514.A2, 16 290 322 80, 98 139 969 80, 98 156 703 80, 98 156 704 80, 98 156 705 80, 98 209 610 80, 98 209 787 80, 98 232 668 80, 98 232 685 80, 98 232 742 80, 98 232 743 80, 98 232 744 80, 98 232 745 80, 98 232 747 80, 9810055780, 98 100 557 80
  • TOYOTA: SU001-A7974, SU001A7974, SU001-A7945, SU001-A7946, SU001-A7862
  • VAUXHALL: 3553732, 3556998, 3557000, 9823920080, 9823954880, 9826028980
  • 039 RS 10114 0N0, M7070STD, B7069STD, TCK335, NA5362, KDC0128N, 10250600, 56083400, 15092300, 15094200, 12045700, 57089600, 180037001500, 181037002300, 120037007400, KDC459.04, V22-1073, 21-0695, 40-1335K, 40-1335K/1, KCD370, 800122210000, OTK030141, 330.971, 369.470, 964.160, 910.610, TK08-1171, SK1700, 61-10750-00, 81-10552-00, 81-38532-00, 12-17500-01, 70-17500-00, AM7070STD, AB7069STD, ATCK335, KCA370, AZMT-40-050-1099, TC2312K, CH6700A, KCC370, BM1128-STD, BB2139-STD, TCK402, HG2324, OS1309, OS2292, VSK2325, C479, AC6524, T4476, WG2378437, C480, AC6523, T4477, WG2378438, H85041-00, P77670-01, P93356-01, N96044-00, P93361-00, WG1460795, WG1751991, WG1752005, WG2042969, WG2102398, WG2008392, WG2102090, WG2102217, WG2179004, WG2304377, WG1903951, WG2102156, WG2047556, WG2178577, WG2188601, WG2325824, WG1005020, WG1103960, WG1192248
User Rating

0.00 average based on 0 reviews.

CITROËN
BERLINGO (ER_, EC_)
TYPE CONSTRUCTION YEAR KW HP CC
1.5 BlueHDi 100 from 06.2018 75 102 1499
1.5 BlueHDi 130 (ECYHZJ, ECYHZR) from 06.2018 96 131 1499
1.5 BlueHDi 75 from 06.2018 56 76 1499
BERLINGO Box Body/MPV (K9)
1.5 BlueHDi 100 from 06.2018 75 102 1499
1.5 BlueHDi 130 from 06.2018 96 131 1499
1.5 BlueHDi 130 4x4 from 06.2018 96 131 1499
1.5 BlueHDi 75 from 10.2019 55 75 1499
C-ELYSEE (DD_)
1.5 BlueHDi 100 from 05.2018 75 102 1499
C3 AIRCROSS II (2R_, 2C_)
1.5 BlueHDi 100 (2CYHYJ) from 08.2018 73 99 1499
1.5 BlueHDi 100 (2CYHYJ) from 08.2018 75 102 1499
1.5 BlueHDi 120 (2CYHXX) from 08.2018 88 120 1499
C3 AIRCROSS II Van (2C_, 2R_)
1.5 BlueHDI 100 from 05.2019 73 99 1499
C3 III (SX)
1.5 BlueHDi 100 (SXYHYP, SXYHTU) from 05.2018 75 102 1499
C3 III Van (SX_, SY_)
BlueHDi 100 from 03.2019 75 102 1499
C4 CACTUS
1.5 BlueHDi 100 from 06.2018 73 99 1499
1.5 BlueHDi 100 from 06.2018 75 102 1499
1.5 BlueHDi 120 from 09.2018 88 120 1499
C4 CACTUS Van (0B_, 0P_)
BlueHDi 100 from 05.2019 73 99 1499
C4 SPACETOURER (3D_)
1.5 BlueHDi 130 from 05.2018 96 131 1499
C4 SPACETOURER Van (3D_)
BlueHDi 130 from 05.2019 96 131 1499
C5 AIRCROSS (A_)
1.5 BlueHDi 130 (ACYHZJ, ACYHZR) from 11.2018 96 131 1499
GRAND C4 SPACETOURER (3A_, 3E_)
1.5 BlueHDi 130 from 05.2018 96 131 1499
GRAND C4 SPACETOURER Van (3A_, 3E_)
BlueHDi 130 from 05.2019 96 131 1499
JUMPY III Bus (V_) | DISPATCH
1.5 BlueHDi 100 from 06.2018 75 102 1499
1.5 BlueHDi 120 from 06.2018 88 120 1499
JUMPY III Van (V_) | DISPATCH
1.5 BlueHDi 100 from 06.2018 75 102 1499
1.5 BlueHDi 120 from 06.2018 88 120 1499
SPACETOURER Bus (V_)
1.5 BlueHDi 100 from 06.2018 75 102 1499
1.5 BlueHDi 120 from 06.2018 88 120 1499

DS
DS 3 / DS 3 CROSSBACK (UR_, UC_, UJ_)
TYPE CONSTRUCTION YEAR KW HP CC
1.5 BlueHDi 100 (UCYHYJ) 10.2018 - 12.2022 75 102 1499
1.5 BlueHDi 130 (UCYHZR) from 10.2018 96 131 1499
DS 7 Crossback (J4_, JR_, JC_) | DS7
1.5 BlueHDi 130 (JCYHZJ, JCYHZR) from 09.2017 96 130 1499

FORD
ECOSPORT
TYPE CONSTRUCTION YEAR KW HP CC
1.5 EcoBlue TDCi from 11.2017 74 100 1499
FOCUS IV (HN)
1.5 EcoBlue from 01.2018 70 95 1499
1.5 EcoBlue from 01.2018 88 120 1499
FOCUS IV Saloon (HM)
1.5 EcoBlue from 11.2018 70 95 1499
1.5 EcoBlue from 11.2018 88 120 1499
FOCUS IV Turnier (HP)
1.5 EcoBlue from 09.2018 70 95 1499
1.5 EcoBlue from 09.2018 88 120 1499
KUGA III (DFK) | ESCAPE
1.5 EcoBlue from 07.2019 88 120 1499
TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV
1.5 EcoBlue from 05.2018 55 75 1499
1.5 EcoBlue from 05.2018 74 101 1499
1.5 EcoBlue from 05.2018 88 120 1499
TRANSIT CONNECT MPV
1.5 EcoBlue from 05.2015 88 120 1499
1.5 EcoBlue from 05.2018 55 75 1499
1.5 EcoBlue from 05.2018 74 101 1499
TRANSIT CONNECT V408 Box Body/MPV
1.5 EcoBlue from 05.2018 55 75 1499
1.5 EcoBlue from 05.2018 74 101 1499
1.5 EcoBlue from 05.2018 88 120 1499

OPEL
COMBO Box Body/MPV (K9)
TYPE CONSTRUCTION YEAR KW HP CC
1.5 D from 08.2018 56 76 1499
1.5 D from 08.2018 75 102 1499
1.5 D from 08.2018 96 131 1499
1.5 D 4x4 from 08.2018 96 131 1499
COMBO E Tour / Life (K9)
1.5 from 06.2018 56 76 1499
1.5 from 06.2018 75 102 1499
1.5 from 06.2018 96 131 1499
CORSA F (P2JO)
1.5 (68) from 07.2019 75 102 1499
CORSA F Hatchback Van
1.5 (68) from 07.2019 75 102 1499
CROSSLAND X / CROSSLAND (P17, P2QO)
1.5 Turbo D (75) from 06.2018 75 102 1499
1.5 Turbo D (75) from 08.2018 88 120 1499
GRANDLAND / GRANDLAND X (A18, P1UO)
1.5 Turbo D (75) from 04.2018 96 131 1499
1.5 Turbo D (75) from 06.2018 75 102 1499

PEUGEOT
2008 I (CU_)
TYPE CONSTRUCTION YEAR KW HP CC
1.5 BlueHDI 100 from 05.2018 75 102 1499
1.5 BlueHDI 120 from 05.2018 88 120 1499
2008 II (UD_, US_, UY_, UK_)
1.5 BlueHDI 100 from 08.2019 75 102 1499
1.5 BlueHDI 130 from 08.2019 96 131 1499
208 Hatchback Van (CR_)
1.5 BlueHDi 100 05.2018 - 12.2019 75 102 1499
208 I (CA_, CC_)
1.5 BlueHDI 100 05.2018 - 12.2019 75 102 1499
208 II (UB_, UP_, UW_, UJ_)
1.5 BlueHDI 100 from 06.2019 75 102 1499
1.5 BlueHDI 130 from 09.2019 96 131 1499
3008 SUV (MC_, MR_, MJ_, M4_)
1.5 BlueHDi 130 from 02.2018 96 131 1499
3008 Van (MR_, MC_, MJ_)
BlueHDi 130 (MCYHZB) from 02.2018 96 131 1499
301
1.5 BlueHDI 100 from 05.2018 75 102 1499
308 II (LB_, LP_, LW_, LH_, L3_)
1.5 BlueHDI 100 05.2018 - 06.2021 75 102 1499
1.5 BlueHDi 130 06.2017 - 06.2021 96 131 1499
308 SW II (LC_, LJ_, LR_, LX_, L4_)
1.5 BlueHDi 100 04.2018 - 06.2021 75 102 1499
1.5 BlueHDi 130 06.2017 - 06.2021 96 131 1499
5008 II (MC_, MJ_, MR_, M4_)
1.5 BlueHDi 130 (MCYHZJ, MCYHZR, MCYHZX) from 02.2018 96 131 1499
5008 II Van (MC_, MJ_)
BlueHDi 130 (MCYHZW, MCYHZR, MCYHZJ) from 06.2018 96 131 1499
508 II (FB_, FH_, F3_)
1.5 BlueHDI 130 (FBYHZJ, FBYHZR) from 10.2018 96 131 1499
508 SW II (FC_, FJ_, F4_)
1.5 BlueHDi 130 from 09.2018 96 131 1499
EXPERT Bus (V_)
1.5 BlueHDi 100 from 06.2018 75 102 1499
1.5 BlueHDi 120 from 06.2018 88 120 1499
EXPERT Van (V_)
1.5 BlueHDi 100 from 06.2018 75 102 1499
1.5 BlueHDi 120 from 06.2018 88 120 1499
PARTNER Box Body/MPV (K9)
1.5 BlueHDi 100 from 07.2019 75 102 1499
1.5 BlueHDI 130 from 09.2018 96 131 1499
1.5 BlueHDI 130 4x4 from 09.2018 96 131 1499
1.5 BlueHDi 75 from 07.2019 55 75 1499
RIFTER
1.5 BlueHDi 100 from 09.2018 75 102 1499
1.5 BlueHDi 130 from 09.2018 96 130 1499
1.5 BlueHDi 75 (ECYHW) from 09.2018 55 75 1499
TRAVELLER Bus (V_)
1.5 BlueHDi 100 from 06.2018 75 102 1499
1.5 BlueHDi 120 from 06.2018 88 120 1499

TOYOTA
PROACE CITY Box Body/MPV
TYPE CONSTRUCTION YEAR KW HP CC
1.5 D-4D 100 (BPZMD) from 10.2019 75 102 1499
1.5 D-4D 130 (BPZMA) from 10.2019 96 131 1499
1.5 D-4D 75 (BPZMJ) from 10.2019 55 75 1499
PROACE CITY VERSO MPV
1.5 D-4D 100 (BKYMD) from 10.2019 75 102 1499
1.5 D-4D 130 (BKYMA) from 10.2019 96 131 1499

VAUXHALL
COMBO Mk IV (E) Box Body/MPV (K9)
TYPE CONSTRUCTION YEAR KW HP CC
1.5 D from 08.2018 56 76 1499
1.5 D from 08.2018 75 102 1499
1.5 D from 08.2018 96 131 1499
1.5 D 4x4 from 08.2018 96 131 1499
COMBO Mk IV (E) Life (K9)
1.5 from 06.2018 75 102 1499
1.5 from 06.2018 96 131 1499
CORSA Mk V (F)
1.5 from 07.2019 75 102 1499
CROSSLAND X / CROSSLAND (P17)
1.5 Turbo D (75) from 06.2018 75 102 1499
1.5 Turbo D (75) from 08.2018 88 120 1499
GRANDLAND X / GRANDLAND (A18)
1.5 Turbo D (75) from 04.2018 96 131 1499
