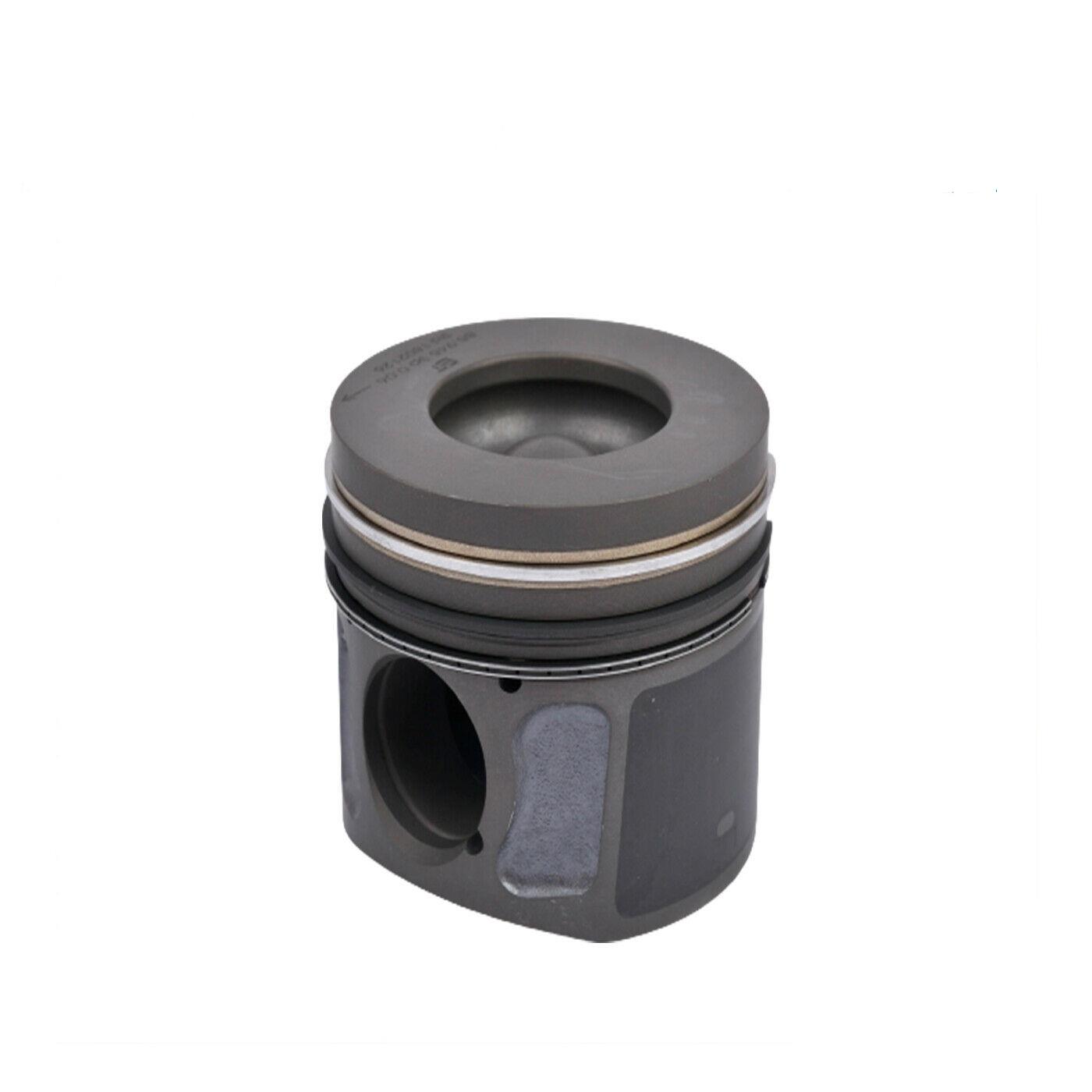

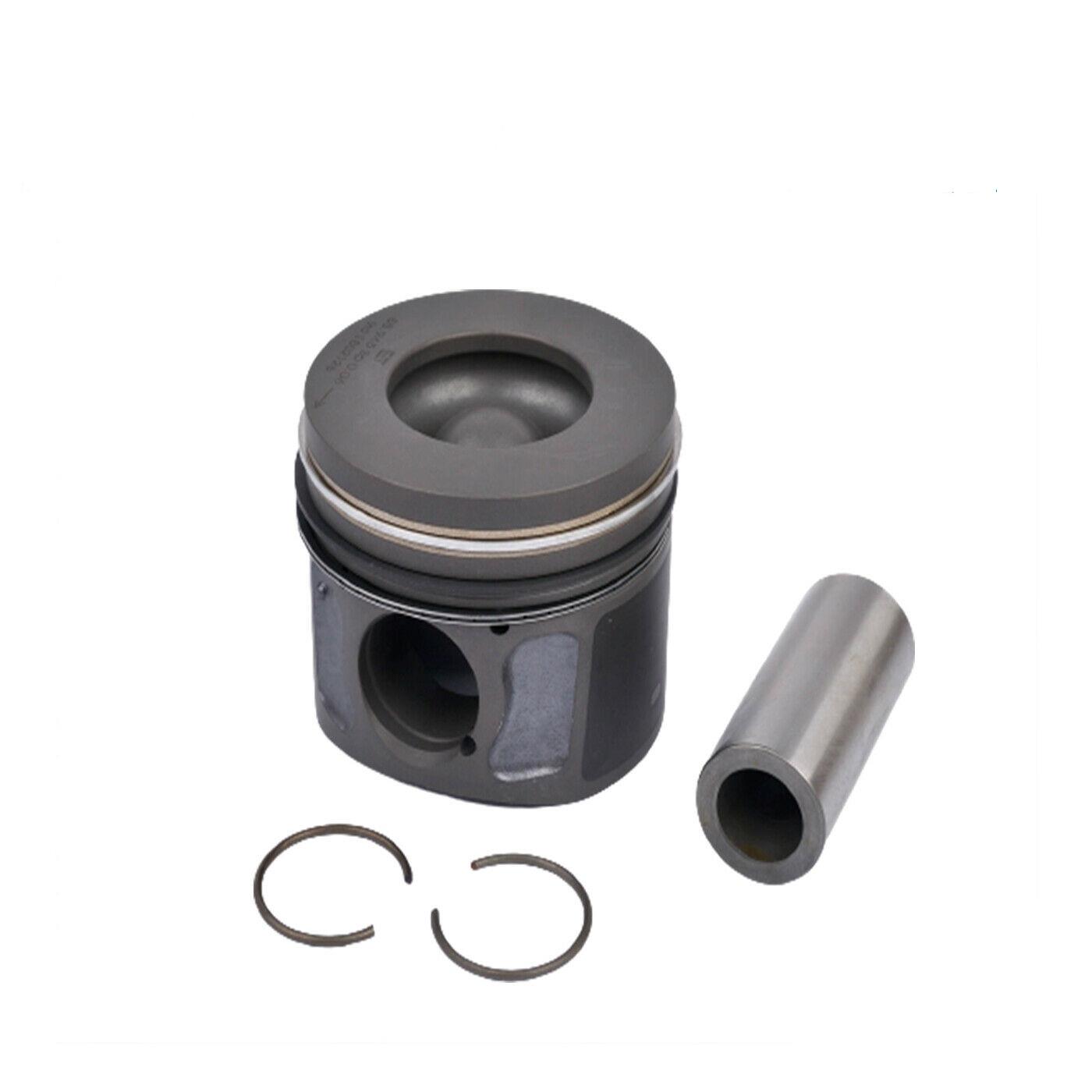

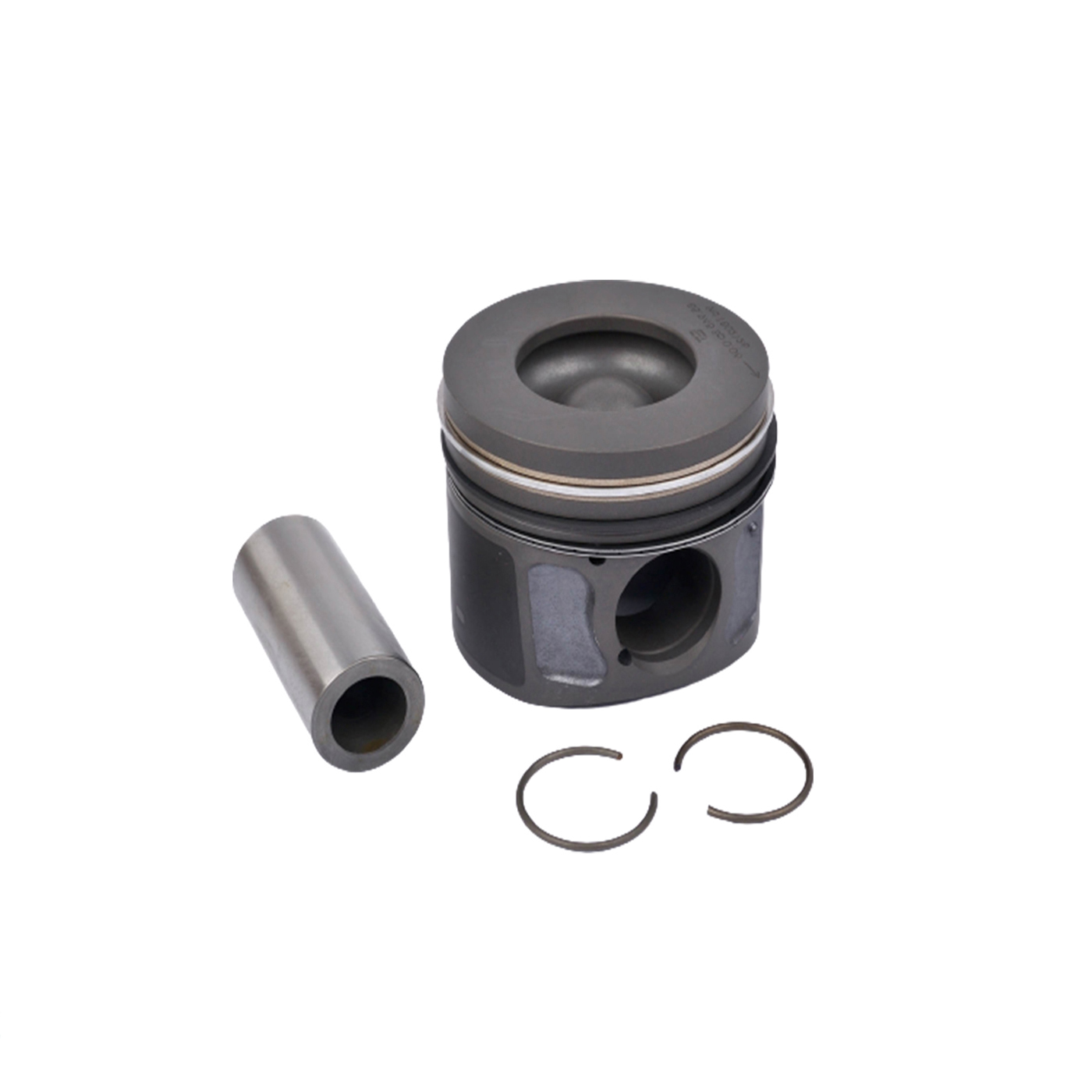

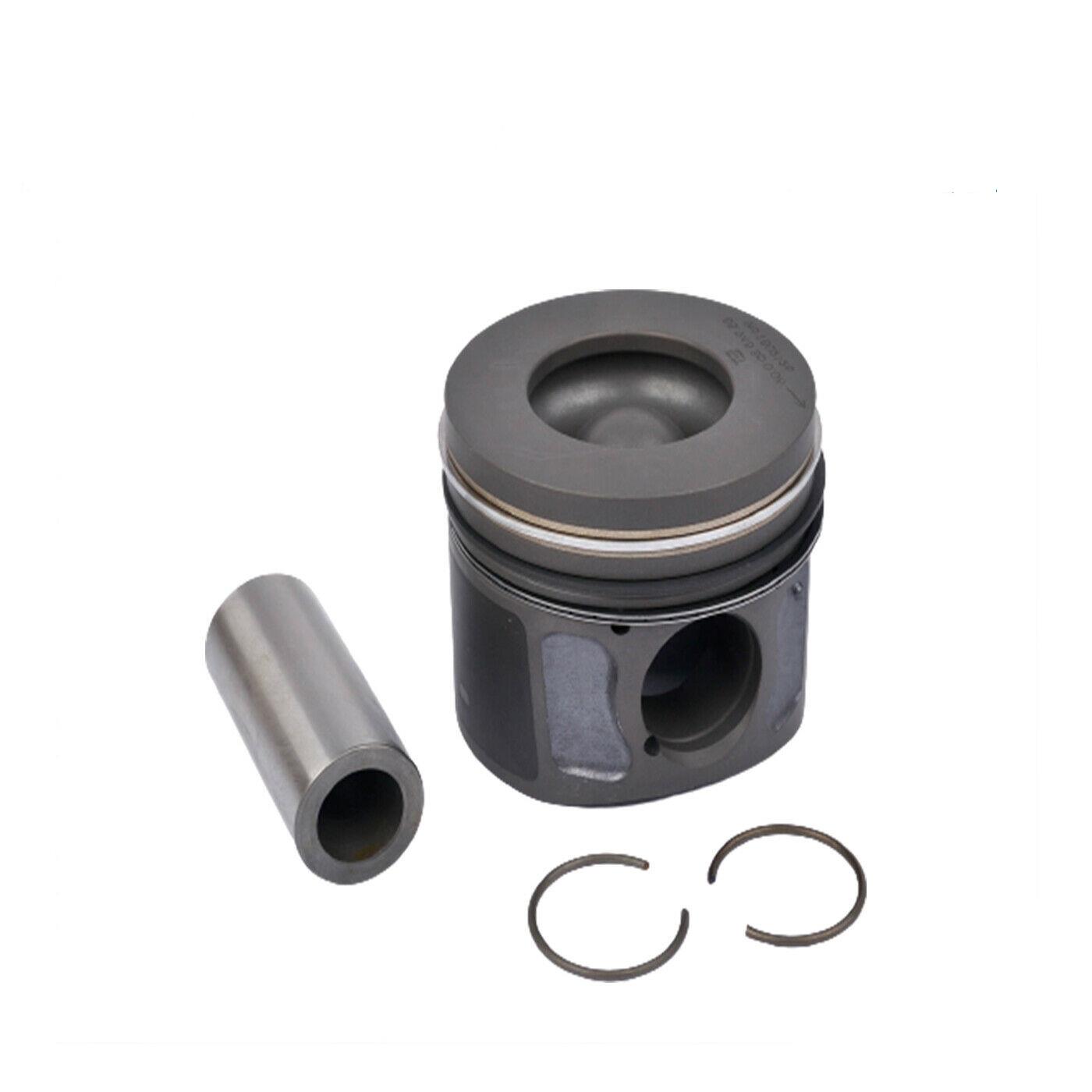

PISTON 2.4 TDCI 90MM DIESEL ENGINE FORD (H2F90011)

£ 45.00
Part Number: H2F90011
Availability: Sold Out
Category: PISTONS
Vehicles: FORD
APEX AUTO PARTS
STD

Bolt Ø [mm]: 32

Bolt length [mm]: 71

Component Number: 61031, 61032, 61033

Quantity: 3

Production Number: 090278

Bore Ø [mm]: 89,905

Compression Height [mm]: 53,5

Length [mm]: 80,5

Recess Depth 1 [mm]: 16,3

Recess Diameter [mm]: 49

Standard Size [STD]

FORD 90MM With Alfin, Oil Cooling, Phosphatinggraphite-Printed.

  • H9FA, H9FB, JXFA, JXFC
  • 1376491, 1376492, 6C1Q-6K100-CAB, 6C1Q-6K100-CBB, 6C1Q6K100CAB
  • PK39-000, 40830600, 87-148100-30
User Rating

0.00 average based on 0 reviews.

FORD
Description Year of construction KW HP CC
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.4 TDCi 03.2004 - 05.2006 101 137 2402
TRANSIT Van (FA_ _): 2.4 TDCi 03.2004 - 05.2006 101 137 2402
TRANSIT Platform/Chassis (FM_ _, FN_ _): 2.4 TDCi 03.2004 - 05.2006 101 137 2402
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.4 TDCi 04.2006 - 08.2014 85 115 2402
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _): 2.4 TDCi 4x4 11.2006 - 08.2014 103 140 2402
TRANSIT Van (FA_ _): 2.4 TDCi RWD 04.2006 - 08.2014 85 115 2402
TRANSIT Van (FA_ _): 2.4 TDCi RWD 04.2006 - 08.2014 103 140 2402
TRANSIT Van (FA_ _): 2.4 TDCi 4x4 11.2006 - 08.2014 103 140 2402
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _): 2.4 TDCi RWD 04.2006 - 08.2014 85 115 2402
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _): 2.4 TDCi 4x4 11.2006 - 08.2014 103 140 2402
